Corvus Saber Foundry Alloy - Adapter - Thin-Neck Insert - (VHC Compatible Lightsaber Part)

The Corvus Saber Foundry Alloy Adapter Thin-Neck Insert provides the aesthetic center of a thin neck assembly to VHC compatible lightsaber builds.

Specifications

• 6061-T6 Aluminum structure
• Neck Thread Length: 6mm
• Wall Thickness: No Less Than 4mm
• Thread Diameter: 20mm
• Internal Diameter: 12mm
• Friction Chamfer for neck strength and security
• Raw finish ready for etching or surface treatments
• Compatible with LGT/Nexus/Damiensaber VHC and TXQ Modular systems.
• Integrates with all Corvus Saber Foundry Alloy accessories!


Alloy Integration

This lightsaber component is designed as a direct expansion for the Corvus Saber Foundry Alloy System offering expanded component flexibility, interchangeability, and system cross compatibility to the greater VHC schema.  Learn more about the Corvus Saber Foundry Alloy System on our dedicated page: Alloy

Product Information

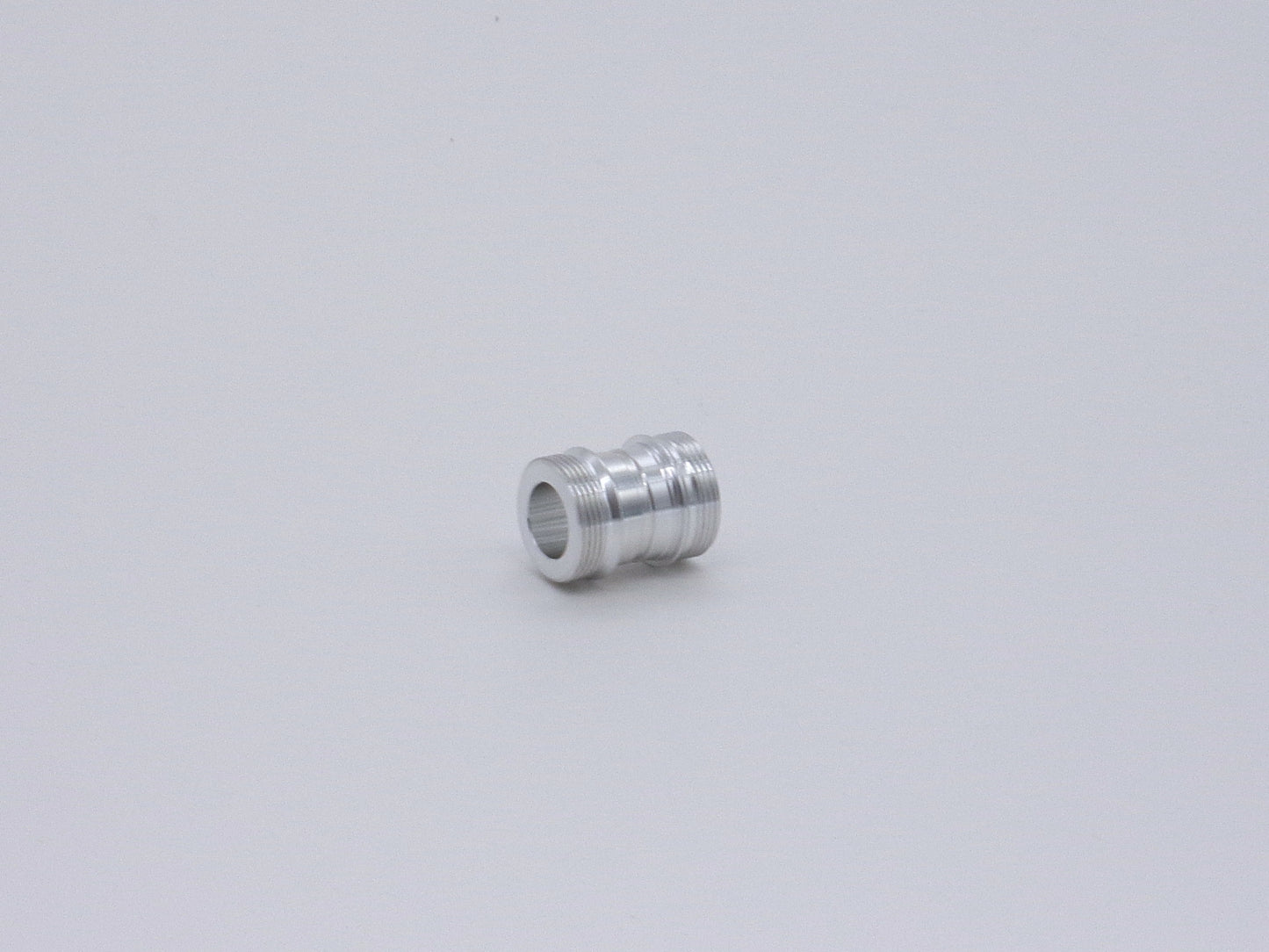

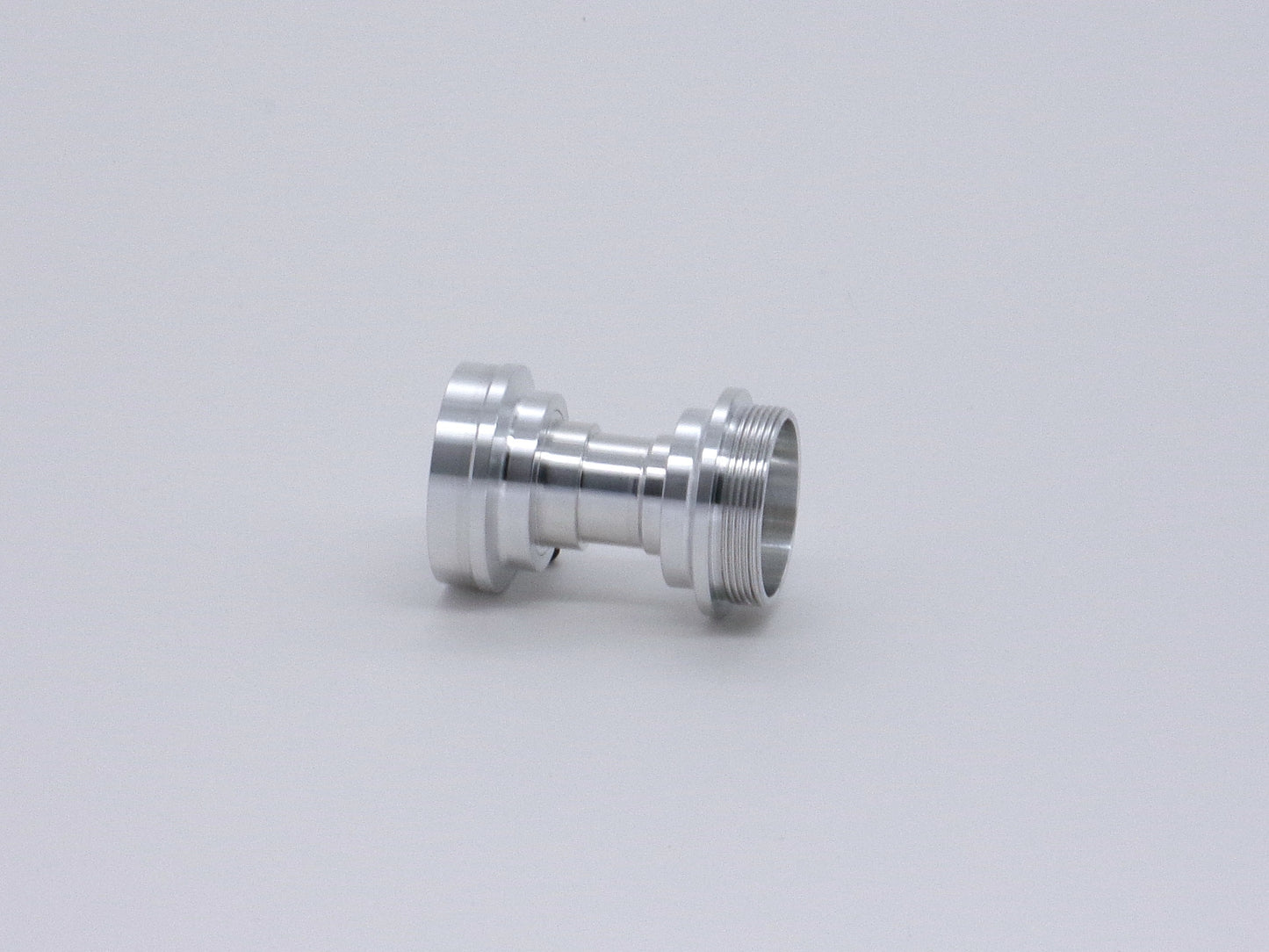

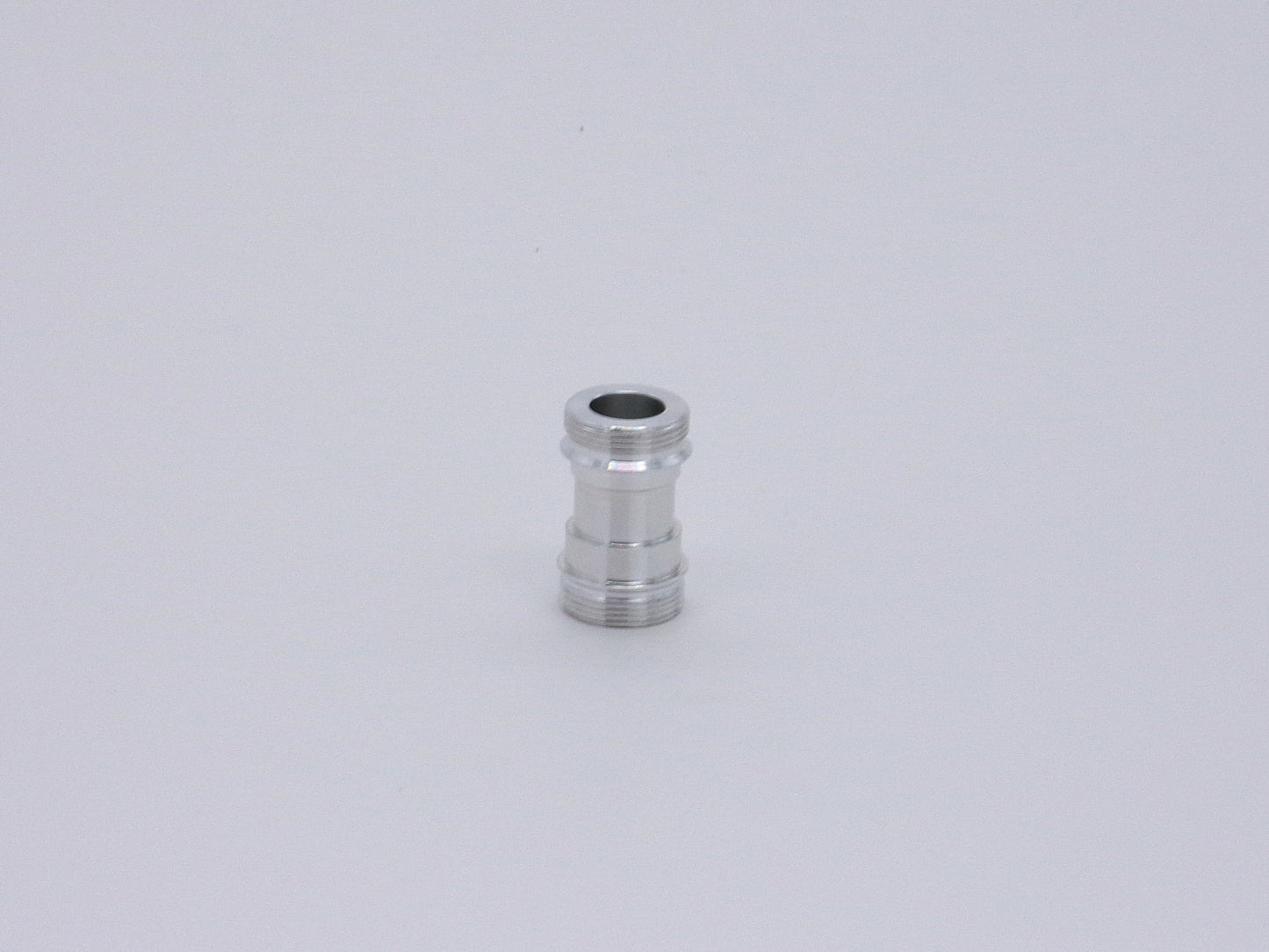

Manufactured from 6061-T6 aluminum, these Alloy Thin-neck inserts features a male-to-male threaded format with matching threads at both ends.  Historically, the thin-neck lightsaber design presents a unique aesthetic aspect and engineering challenge.  These insert designs prioritize strength and security offering a 6mm Neck Insert Thread length and a 45degree friction chamfer that locks the neck to the base while redirecting force.  Asymmetric insert profiles further the aesthetic legacy; users will find the matching thread ends provide two neck options in a single insert by simply changing the orientation of the insert.  A raw finish allows for user customization through etching, weathering or other surface treatments.

Neck Types

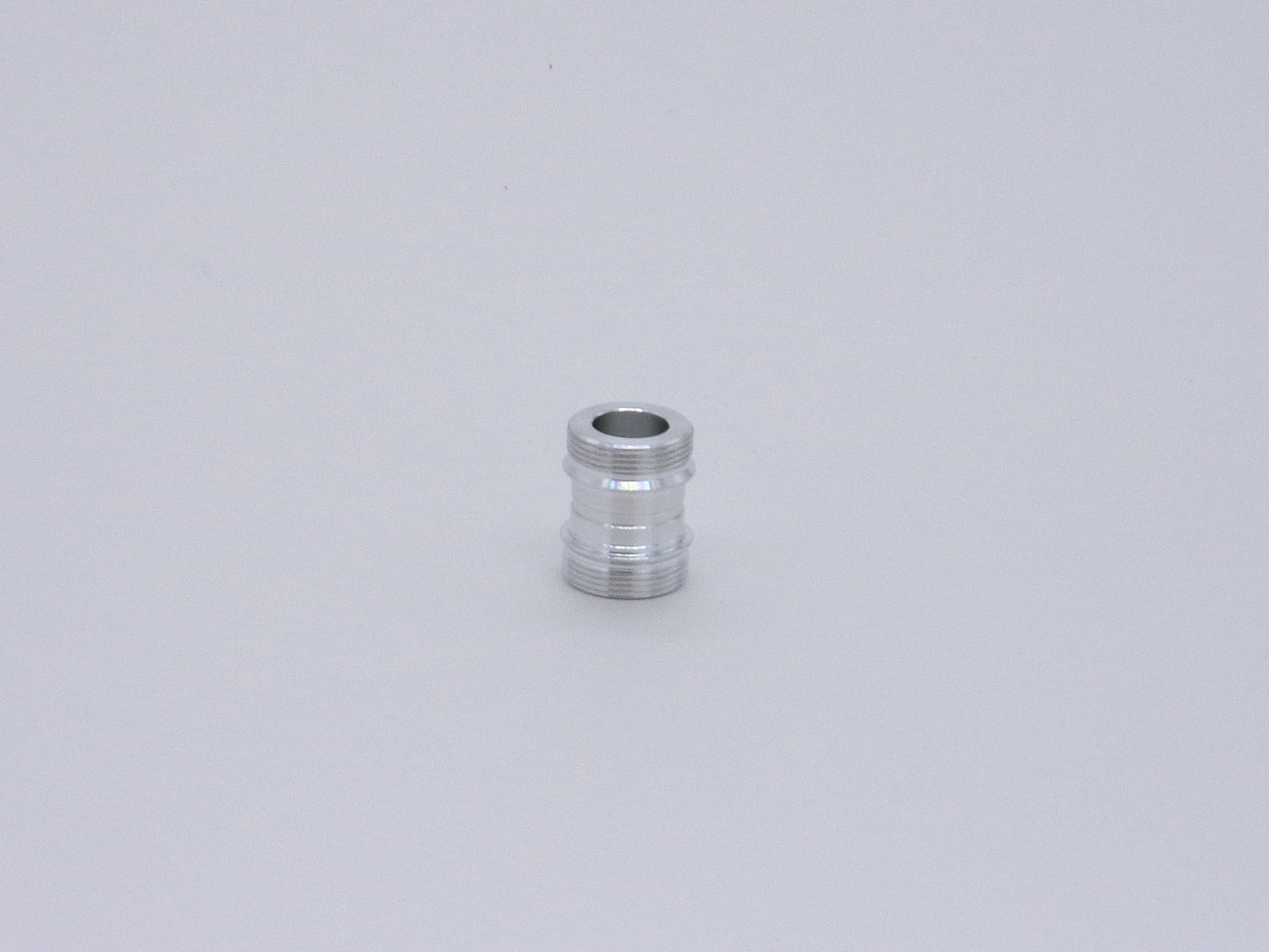

• Type 1 - Straight Style
  • Length: 22mm
  • Greatest Diameter: 18.5mm
  • Least Diameter: 16mm

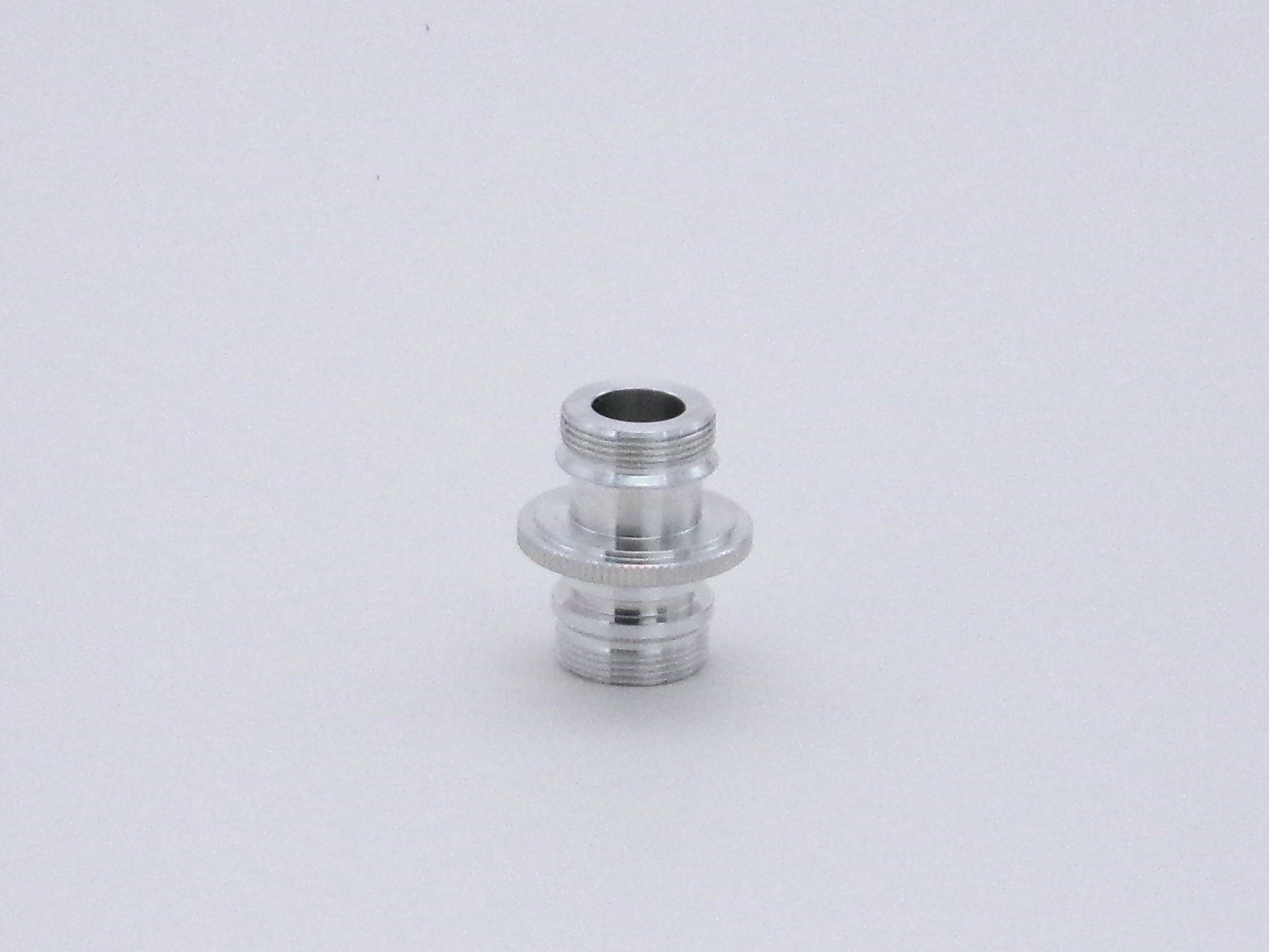

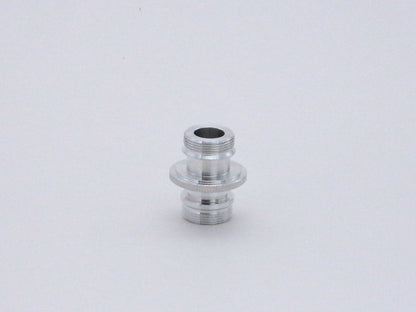

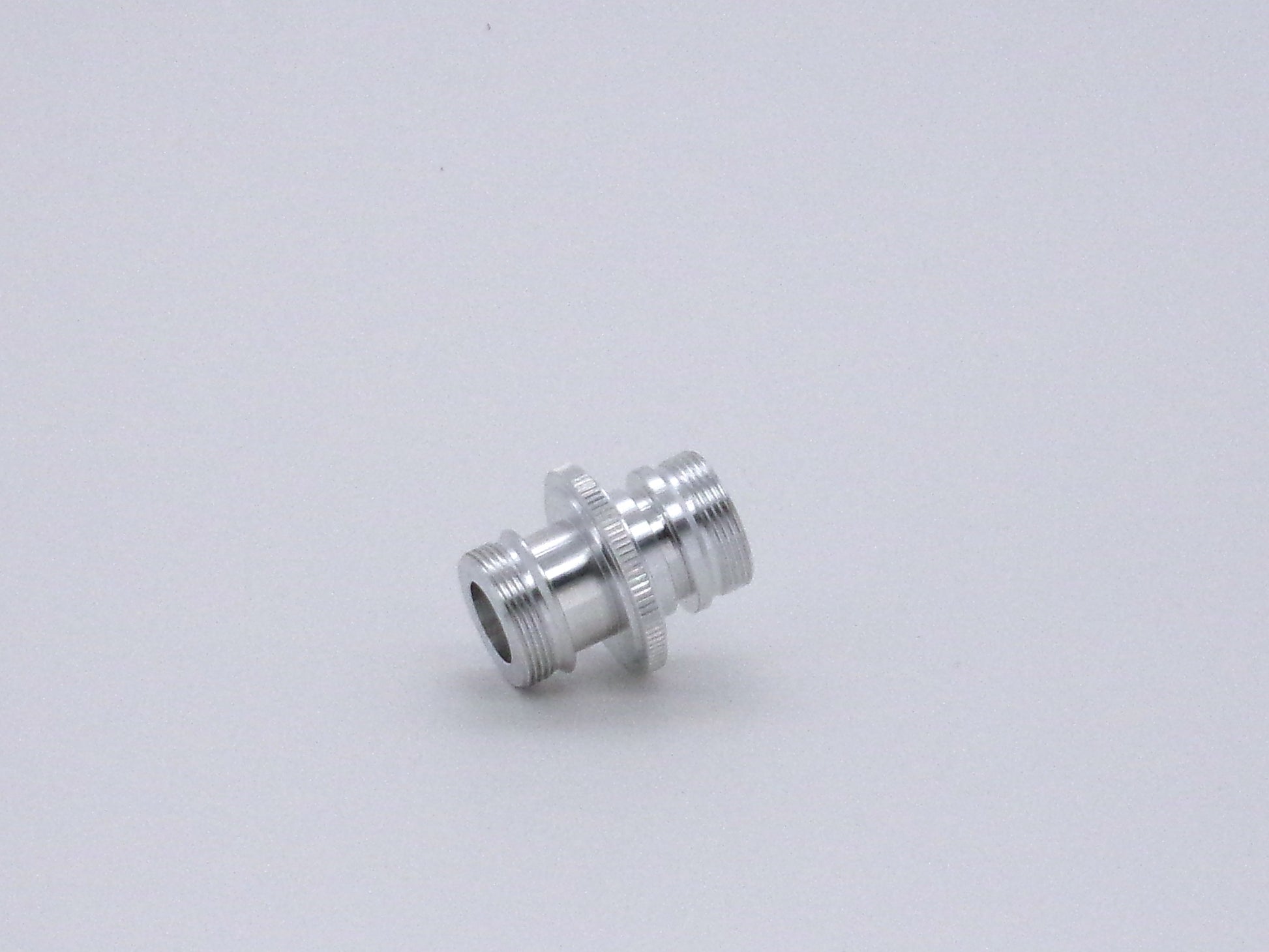

• Type 2 - Knurled Disc Style
  • Length: 19.5mm
  • Greatest Diameter: 30mm
  • Least Diameter: 16mm
  • (Item pictured do not have knurling does not have knurling, please refer to the CAD drawing for design reference.)
• Type 3 - Wasp Waist Style
  • Length: 11mm
  • Greatest Diameter: 18mm
  • Least Diamter: 17mm

Technical Considerations

Due to the reduced diameter of the neck section, these components require careful consideration of internal component placement.  Due to VHC form factor limitations, users making a bold thin-neck designs that deviate from current standards may require chassis modification or a custom chassis to accommodate.  We recommend using a pre-existing thin-neck core with pigtail and adapting it to your purpose.  Corvus Saber Foundry is not responsible for damages to chassis due to user modifications.  Fortune favors the bold.  Good luck.

Compatibility

Alloy components are designed to interface with known form factors, dimensions, as well as meet or exceed material strength of LGT/Nexus/Damiensaber VHC and TXQ Modular systems.  Specifically, Alloy components are manufactured from a higher strength aluminum alloy which provides enhanced durability and strength.  Integration and use with other Corvus Saber Foundry Alloy components and other similarly compatible third-party parts is supported and encouraged!

Safety and Usage

This thin-neck lightsaber components are intended for light choreography.  While our design features a 200% increase in insert thread lenght, and a 33% increase in thread wall thickness compared to competitors as well as a friction-locking chamfer, users are advised to exercise caution during handling to avoid heavy impacts or strong blade binds.  We believe these necks are suitable for dueling, testing is on-going, as always duel at your own risk.

For questions on Fitment and Compatibility, please visit our Fitment FAQ

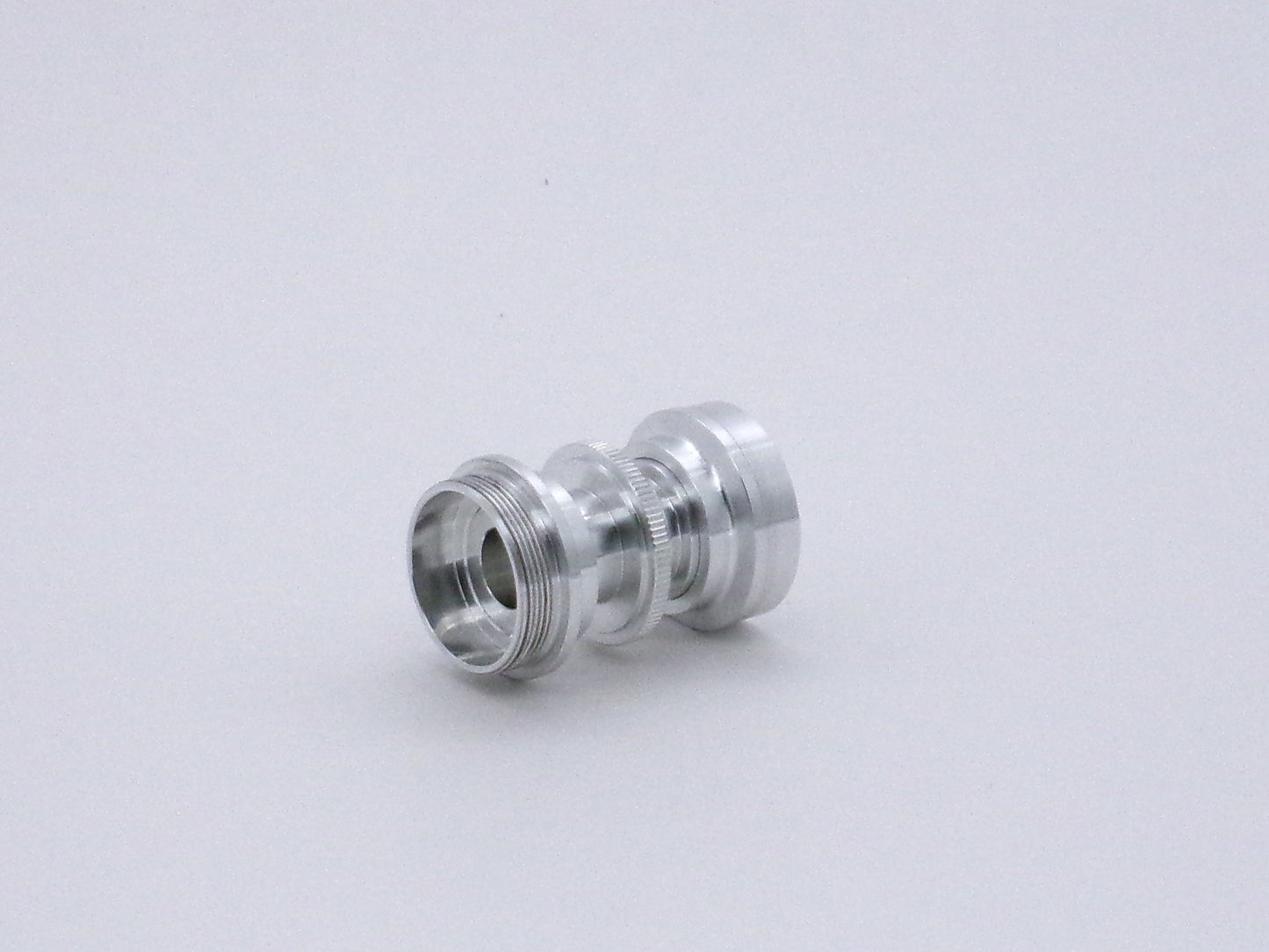

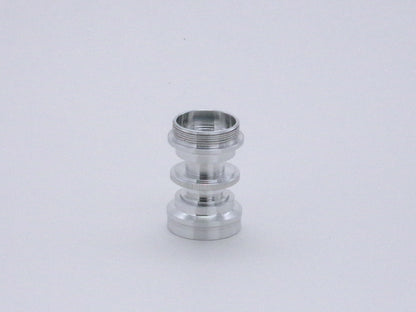

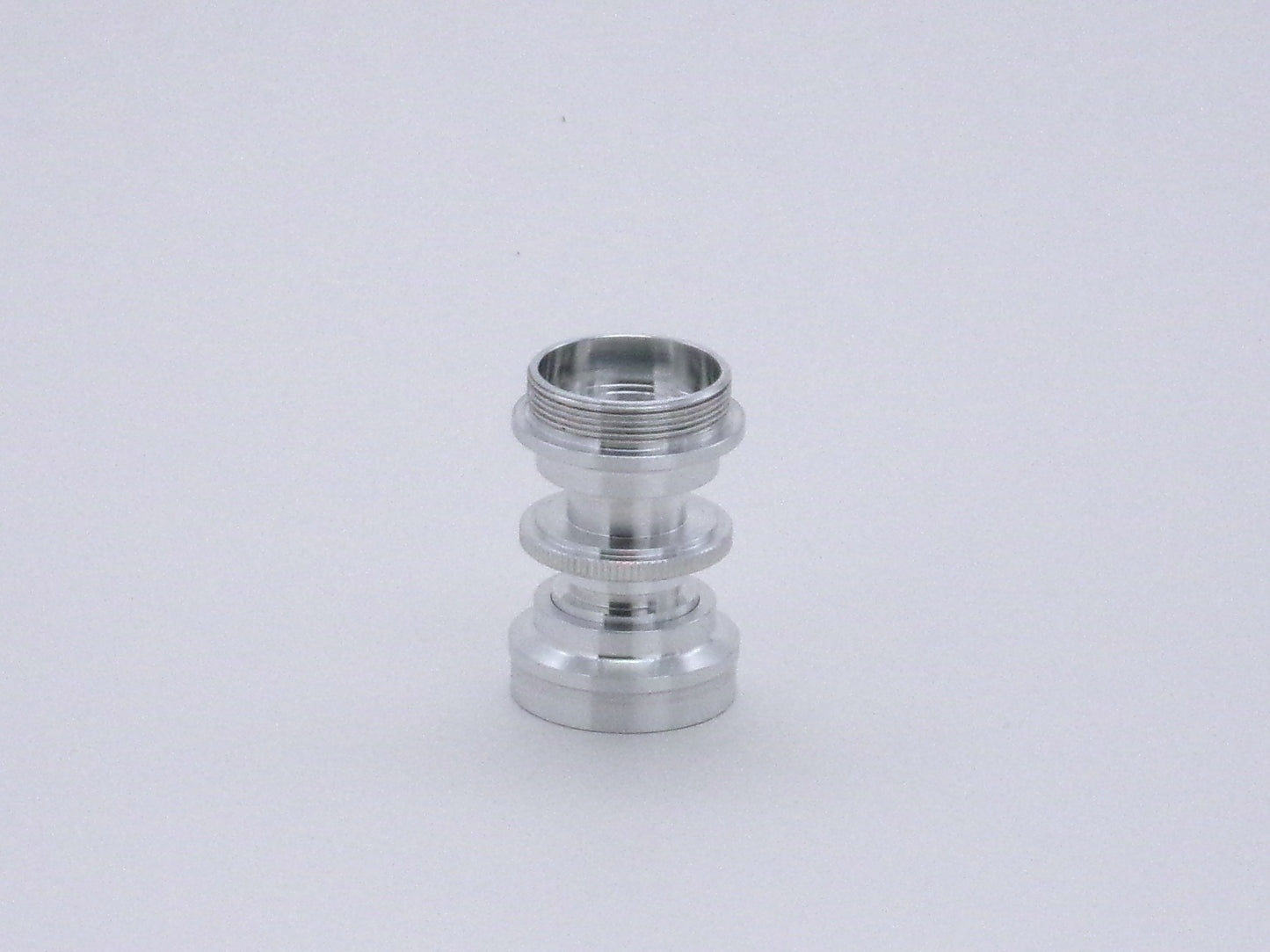

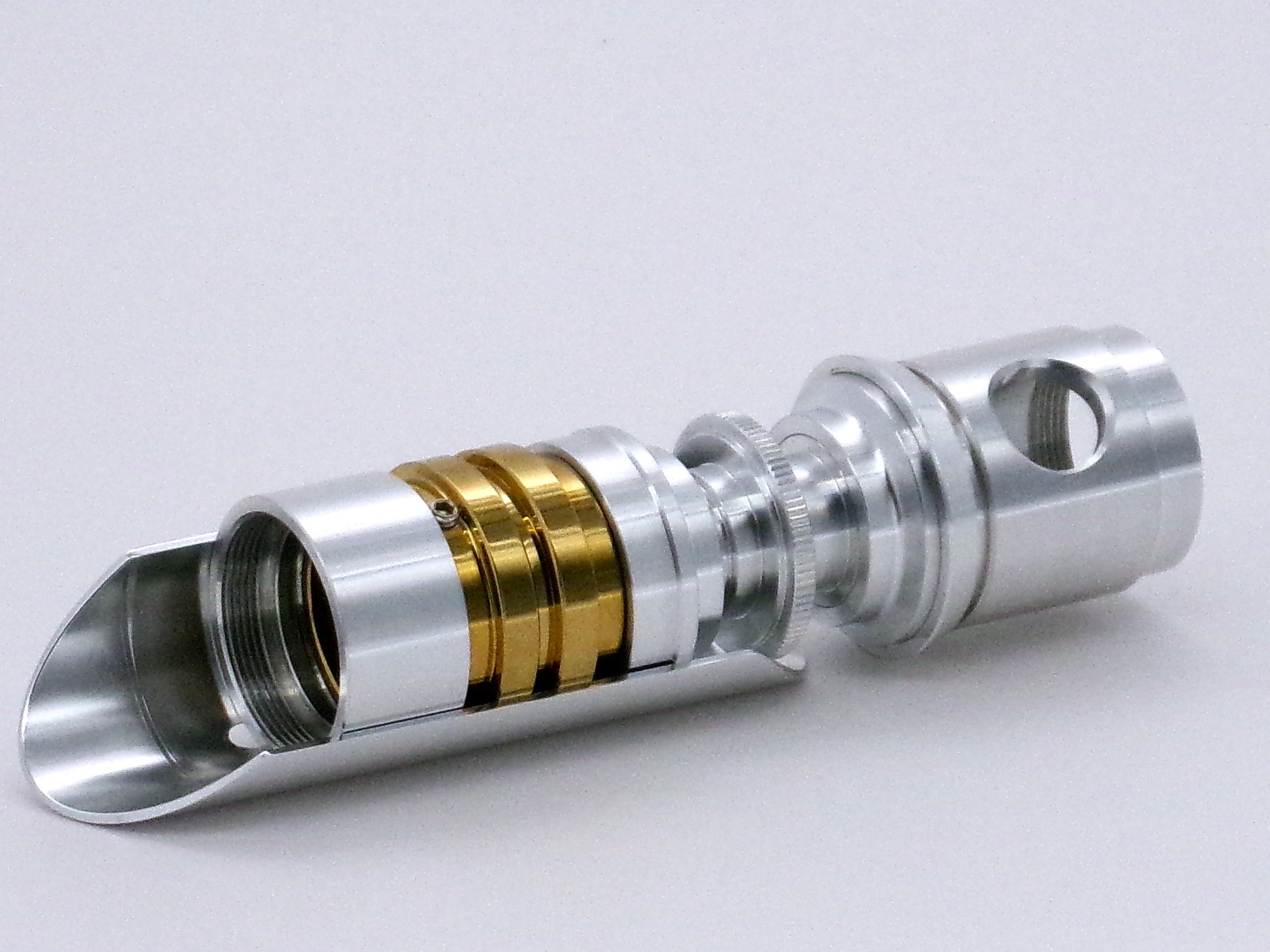

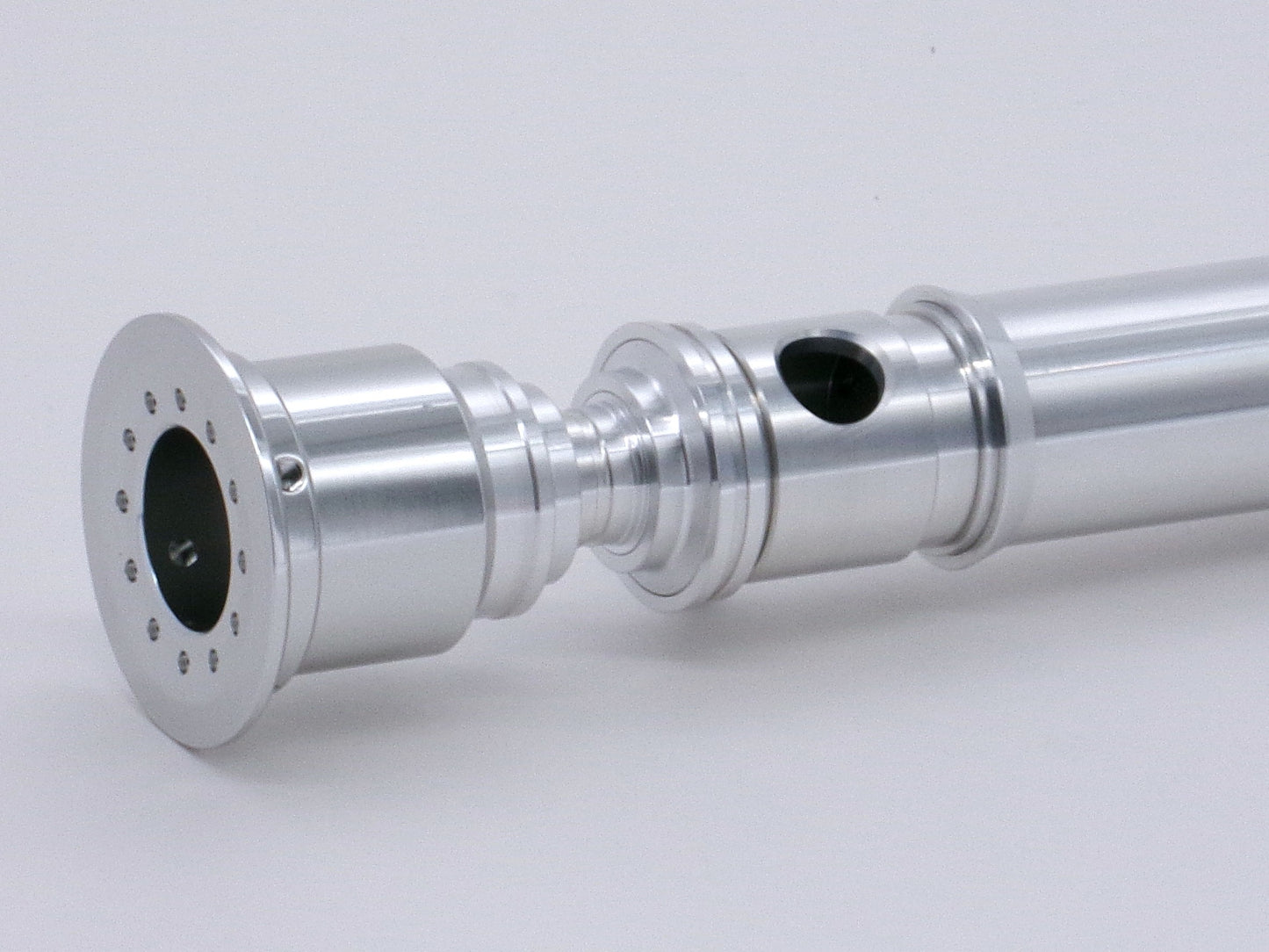

Listing is for a single item.  Additional parts illustrated are for demonstration purposes of possible configurations and size representation only.
