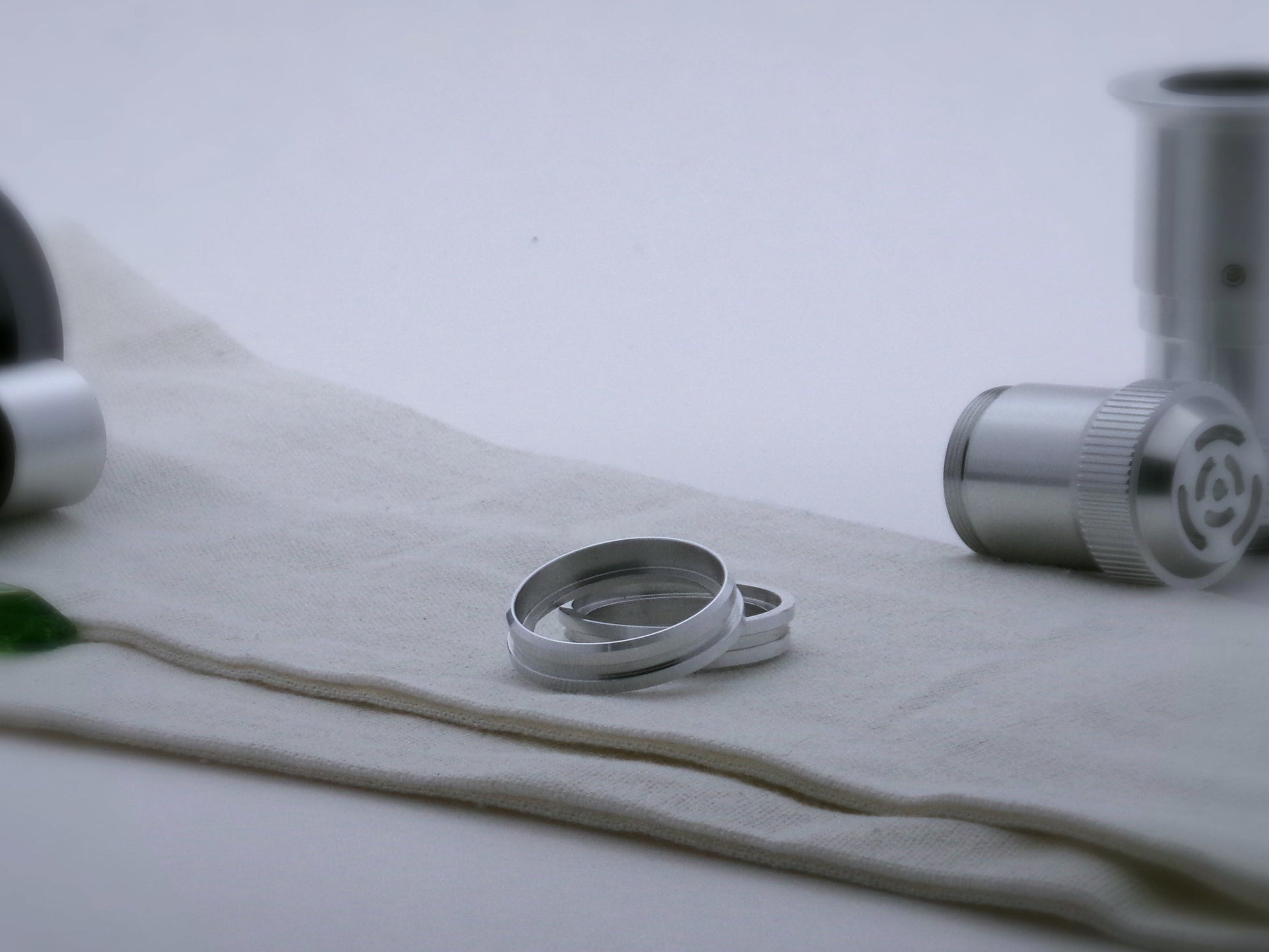

• Pair of aluminum accent rings for VHC lightsabers with offset bands and a deep central groove, one askew upon the other, showing shimsert.

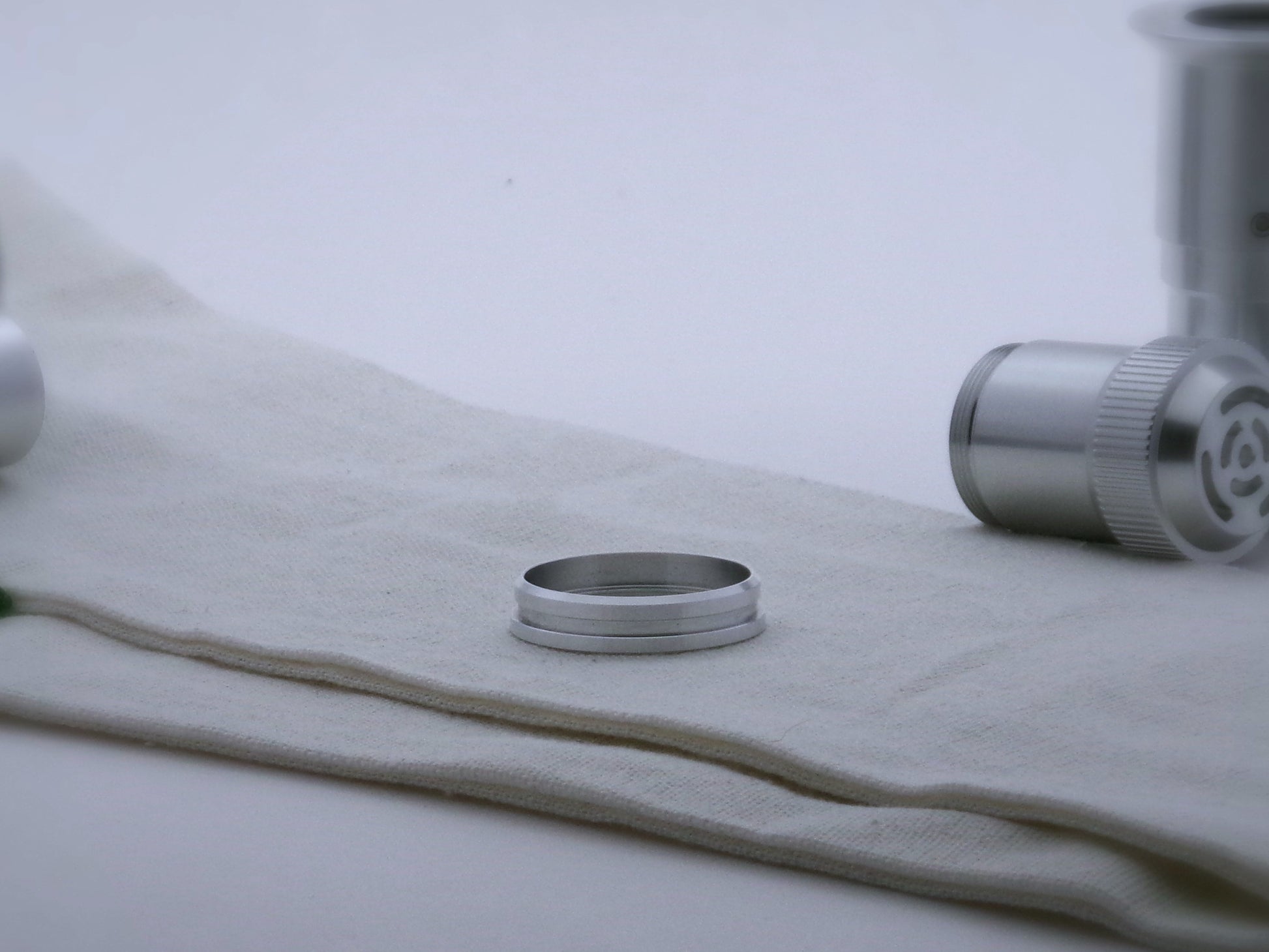

  • Single aluminum accent ring for VHC lightsabers with offset bands and a deep central groove, shimsert facing upward.

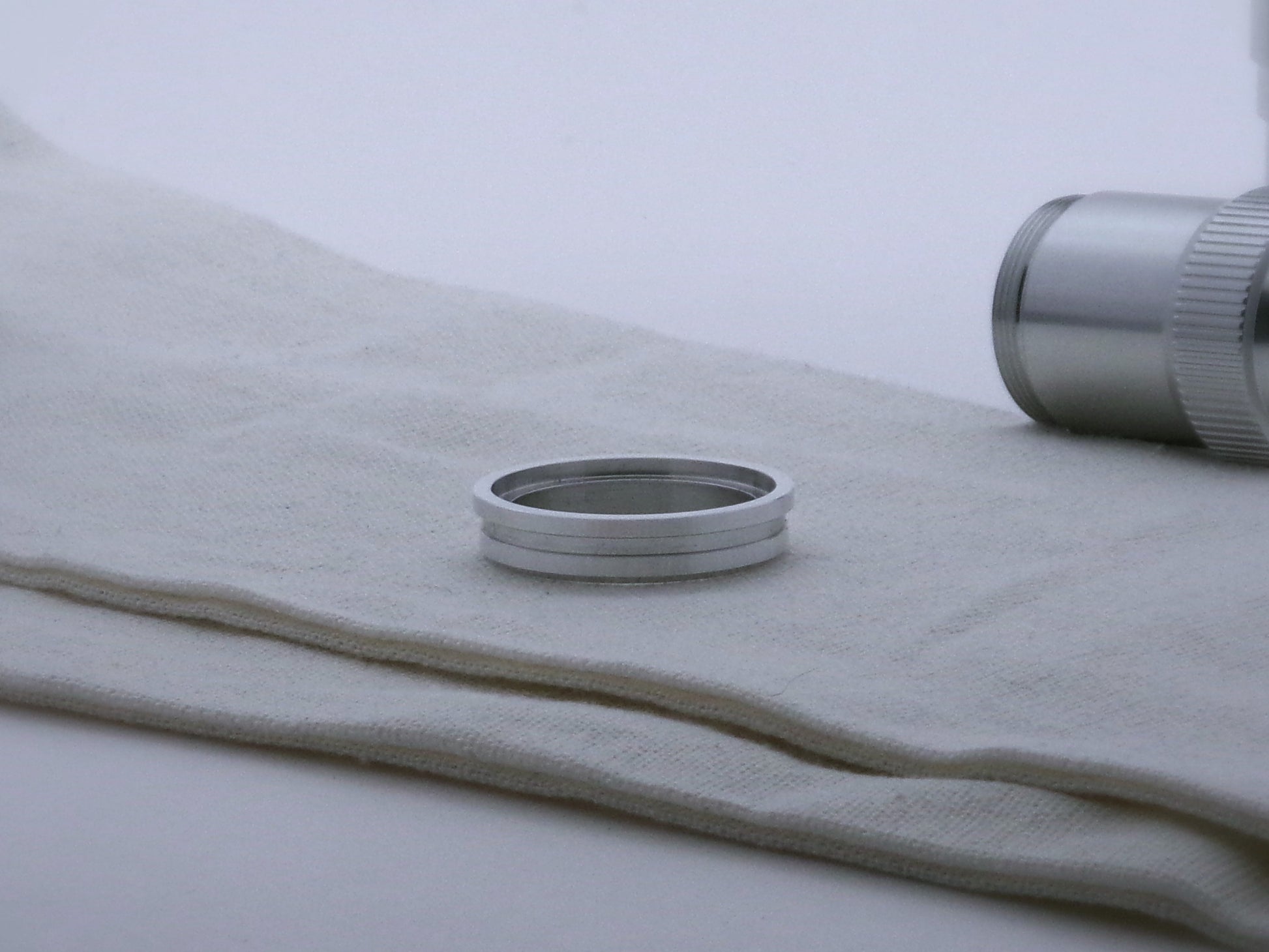

  • Single aluminum accent ring for VHC lightsabers with offset bands and a deep central groove, beveled lower edge facing upward.

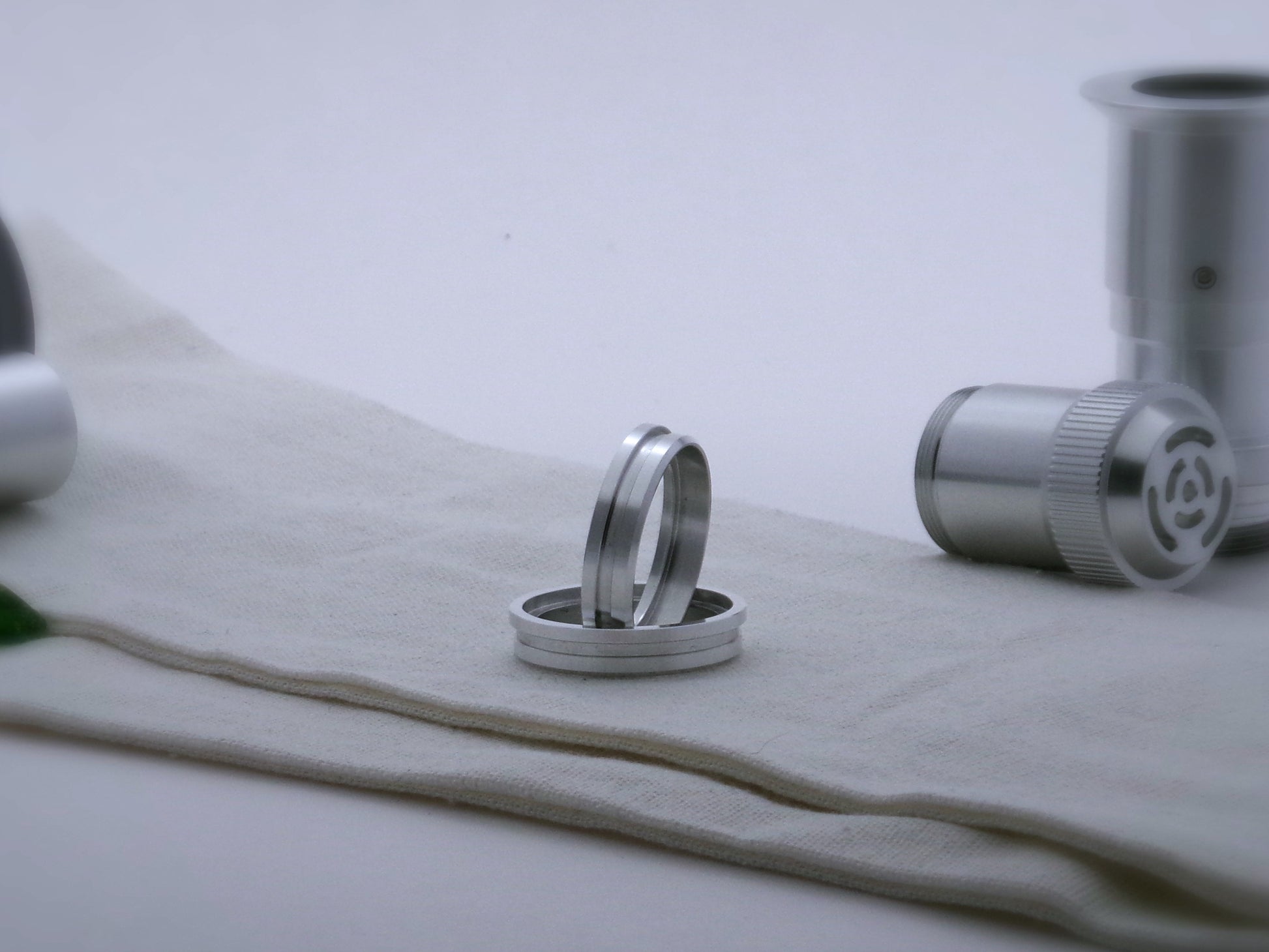

  • Pair of simple accent rings for VHC lightsabers with offset bands and deep central groove, one standing vertically on edge inside the other.

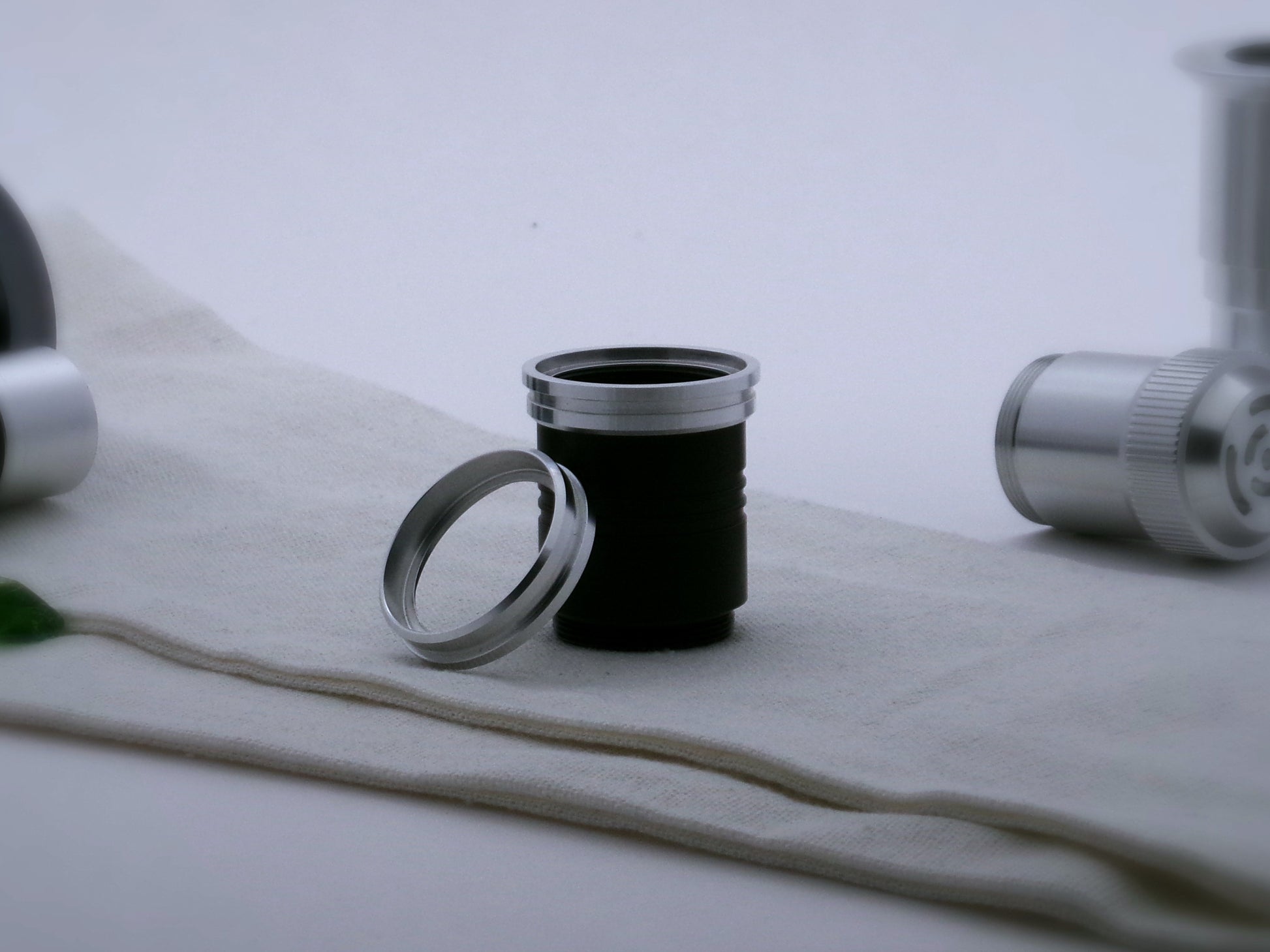

  • A pair of aluminum accent rings for VHC lightsabers with offset bands and deep central groove, the first installed on a black grip extension, the second leaning against it.

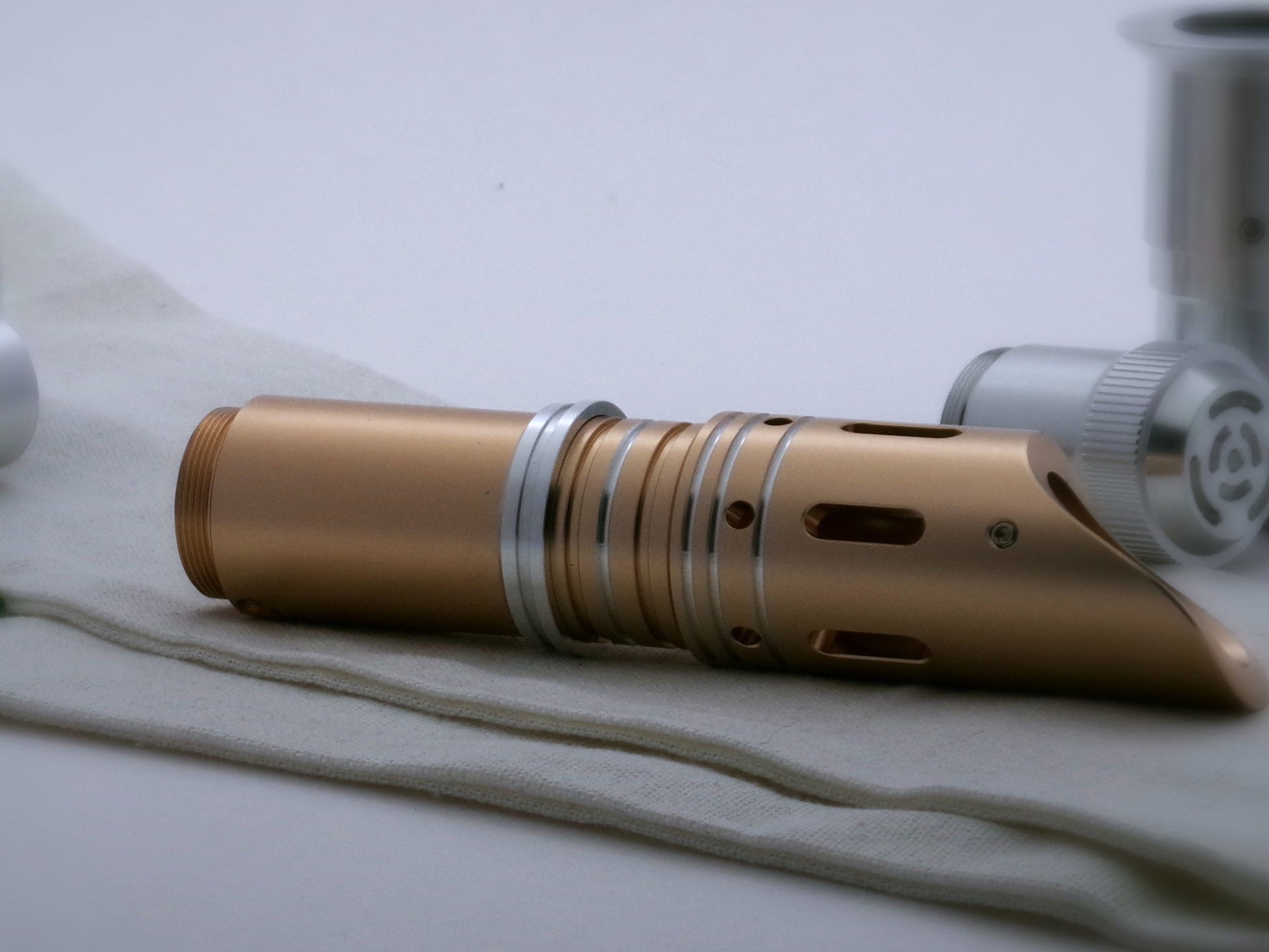

  • Single, aluminum accent ring with offset bands and a deep central groove installed between the switch and emitter of a golden VHC lightsaber.

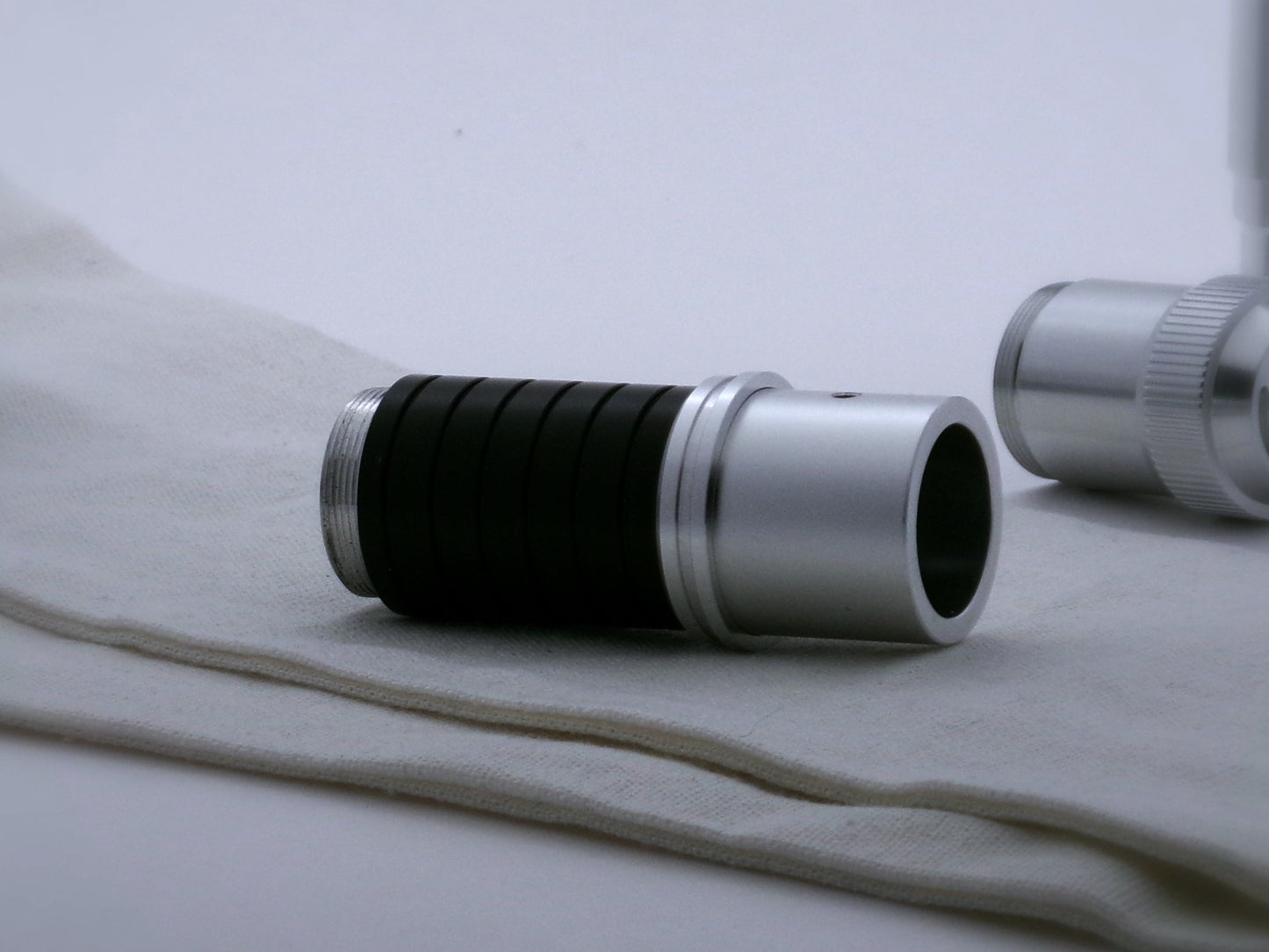

  • Single, aluminum accent ring with offset bands and a deep central groove installed on mixed components of a VHC lightsaber.
1 7

Accent Ring - Type_4

Accent Ring - Type_4

$10.00
$10.00
Sale Sold out
Shipping calculated at checkout.

Corvus Saber Foundry Alloy - Accent Ring - Type_4 (VHC Compatible Lightsaber Part)

The Corvus Saber Foundry Alloy Accent Ring- Type_4 provides an 8mm aesthetic ring component to add dimension, depth, and character to VHC compatible lightsaber builds.

Specifications

  • 6061-T6 Aluminum structure
  • Height: 8 mm
  • Major Outer Diameter: 37.55 mm
  • Minor Outer Diameter: 36.15mm
  • Ring Inner Diameter: 33.15mm
  • Shim Offset: 2.25mm/5.25mm
  • Shim Inner Diameter: 29.15mm/Thickness: 0.50mm
  • Shim Clocking: ~180*
  • Raw finish ready for etching or surface treatments
  • Compatible with LGT/Nexus/Damiensaber VHC and TXQ Modular systems.
  • Integrates with all Corvus Saber Foundry Alloy accessories!

Alloy Integration

This lightsaber component is designed as a direct expansion for the Corvus Saber Foundry Alloy System offering expanded component flexibility, interchangeability, and system cross compatibility to the greater VHC schema.  Learn more about the Corvus Saber Foundry Alloy System on our dedicated page: Alloy

Product Information

Manufactured from 6061-T6 aluminum, this Alloy Accent Ring features a staggered ring with a separating valley profile.  Designed to accentuate the areas between major components, this accent ring enhances saber profile, creates a nested appearance, and furnishes a uniquely constructed feel to your lightsaber.  The raised profile functionally enhances saber handling by providing users a convenient index or finger positioning register.  The inner diameter exhibits our innovative 'shimsert' mounting solution which utilizes an offset inner lip that slips over the joining threads and acts as a shim, securing the Accent Ring between connecting hilt sections.  This eliminates the need for threads or other fasteners, simplifying installation and providing a clean nested parts aesthetic.  The offset design provides the user two looks in one part with a flip!  The raw finish allows for user customization through etching, weathering or other surface treatments.

Compatibility

Alloy components are designed to interface with known form factors, dimensions, as well as meet or exceed material strength of LGT/Nexus/Damiensaber VHC and TXQ Modular systems.  Specifically, Alloy components are manufactured from a higher strength aluminum alloy which provides enhanced durability and strength.  Integration and use with other Corvus Saber Foundry Alloy components and other similarly compatible third-party parts is supported and encouraged!

For questions on Fitment and Compatibility, please visit our Fitment FAQ

Listing is for a single item.  Additional parts illustrated are for demonstration purposes of possible configurations and size representation only.
