Corvus Saber Foundry Alloy - Emitter Kit MPP-M - (VHC Compatible Lightsaber Part)

The MPP-M Emitter Kit is a three-part modular system designed for the Variable Hilt Component (VHC) ecosystem. Drawing inspiration from vintage Micro Precision Products flash assemblies, this kit combines Original Trilogy prop design aesthetic with modern hilt-building modular versatility.

Kit Component Specifications

Shroud - MPP-M Specifications

• Overall Length added: 48.40 mm
• Shroud Outer Diameter: 37.15mm
• Fits Outer Diameter: 33mm
• Slot Adjustability: 17mm
• Fitment: Uses an M4x0.7 Button Head Screw
• Weight: 0.7 oz

Accent Ring MPP-M

• Max Height: 21.50 mm
• Ring Height: 12mm
• Max Diameter: 39.10mm
• Ring Inner Diameter: 33.05mm
• Shim Offset: 2.25mm/7mm
• Shim Inner Diameter: 29.15mm/Thickness: 0.50mm
• Shim Clocking: ~180*
• Alternate Fitment: M4x0.7 Button Head Screw
• Weight: 0.5 oz

Emitter Tip - Type_3

• Length added: 14mm
• Outer Diameter: 33mm
• VHC Male Threaded
• 4x M4x0.7 Retention/Mounting Locations
• Weight: 0.4 oz

Kit Details

• Full Kit Weight: 1.6 oz
• 6061-T6 Aluminum structure
• Compatibility with LGT/Nexus/Damiensaber VHC System parts
• Raw finish ready for customization
• Compatible and complimentary with all Corvus Saber Foundry accessories!

Alloy Integration

This lightsaber component is designed as a direct expansion for the Corvus Saber Foundry Alloy System offering expanded component flexibility, interchangeability, and system cross compatibility to the greater VHC schema. Learn more about the Corvus Saber Foundry Alloy System on our dedicated page: Alloy

Kit Information

The Corvus Saber Foundry MPP-M Emitter Kit, short for MPP Modular, is a market-first, fully integrated three-part system designed for the Alloy System to enhance the greater Variable Hilt Component (VHC) ecosystem. Inspired by the legendary Micro Precision Products flashgun hardware, this kit moves beyond the limitations of traditional, single-piece emitter shrouds. Instead, it delivers a true "system-first" approach, balancing cinematic prop heritage with modular engineering providing an aggressive, instantly recognizable silhouette built for the modern VHC saber smith, but with a modular twist!

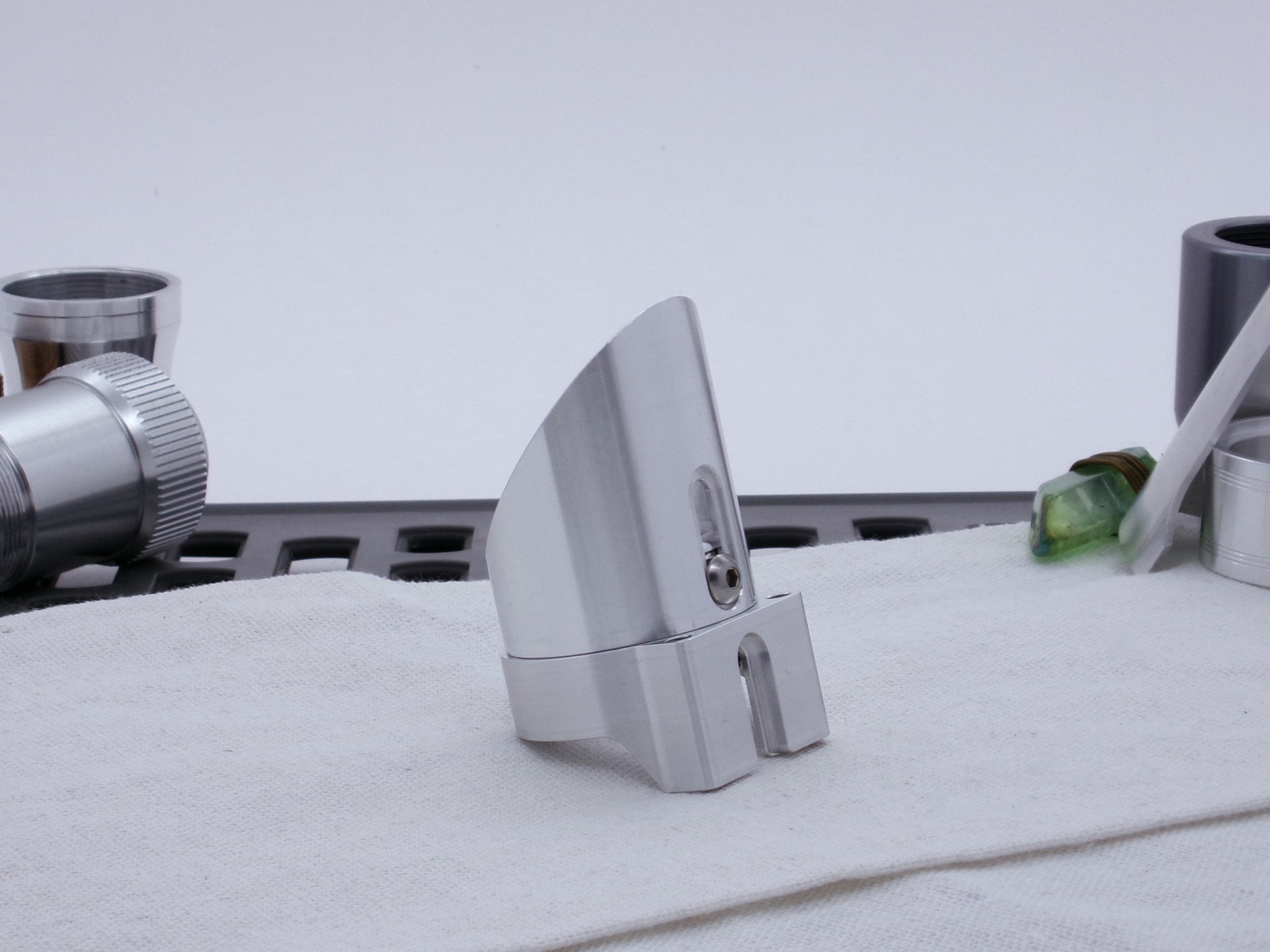

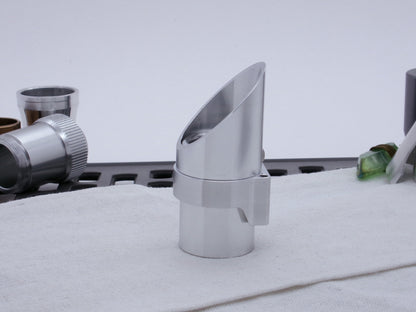

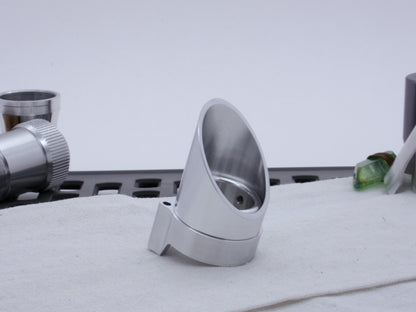

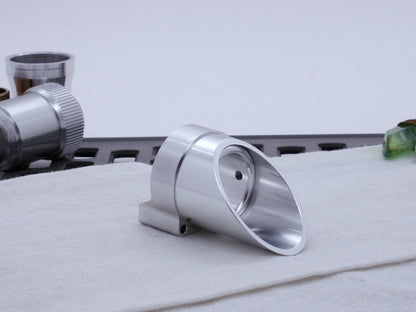

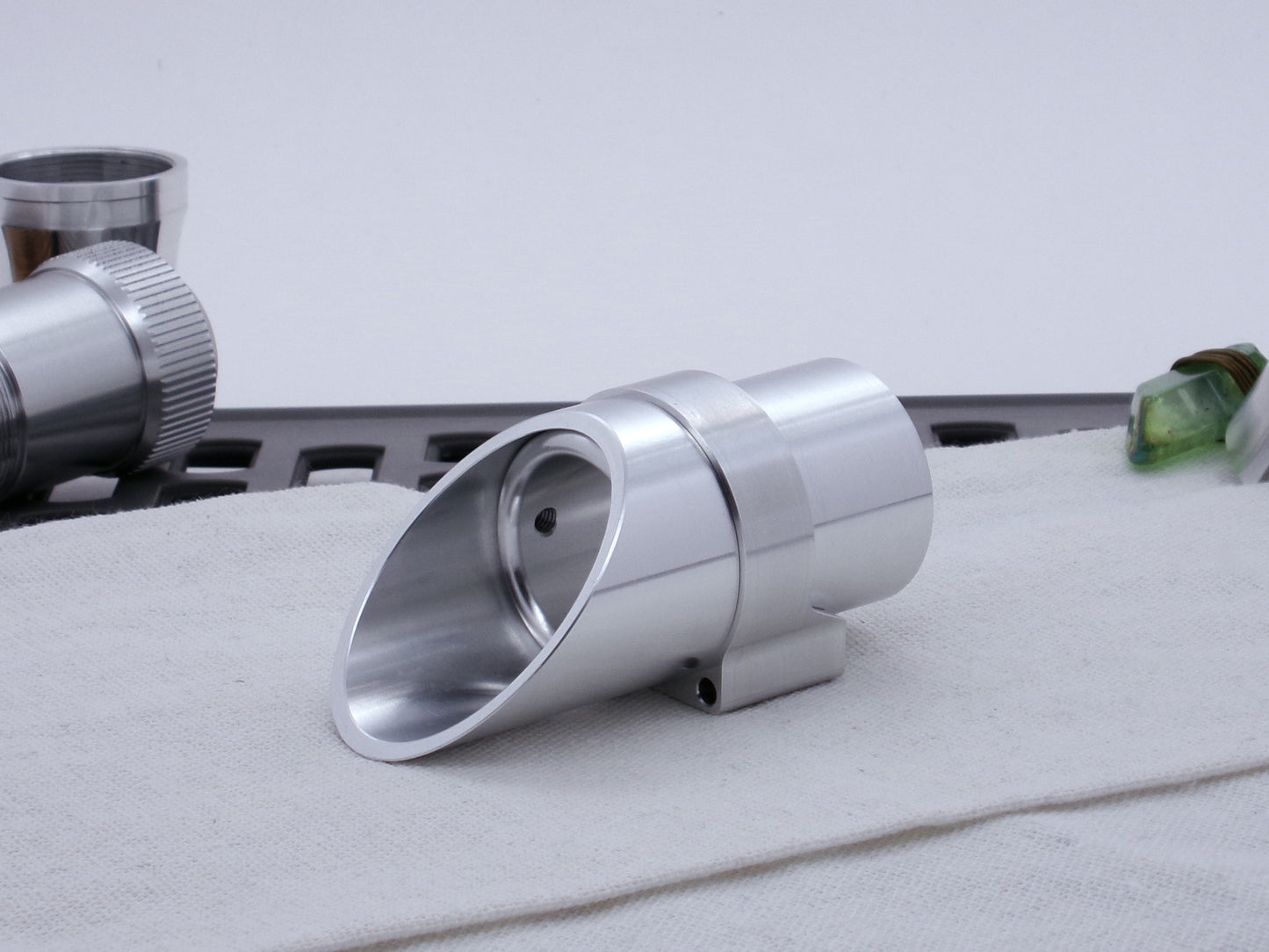

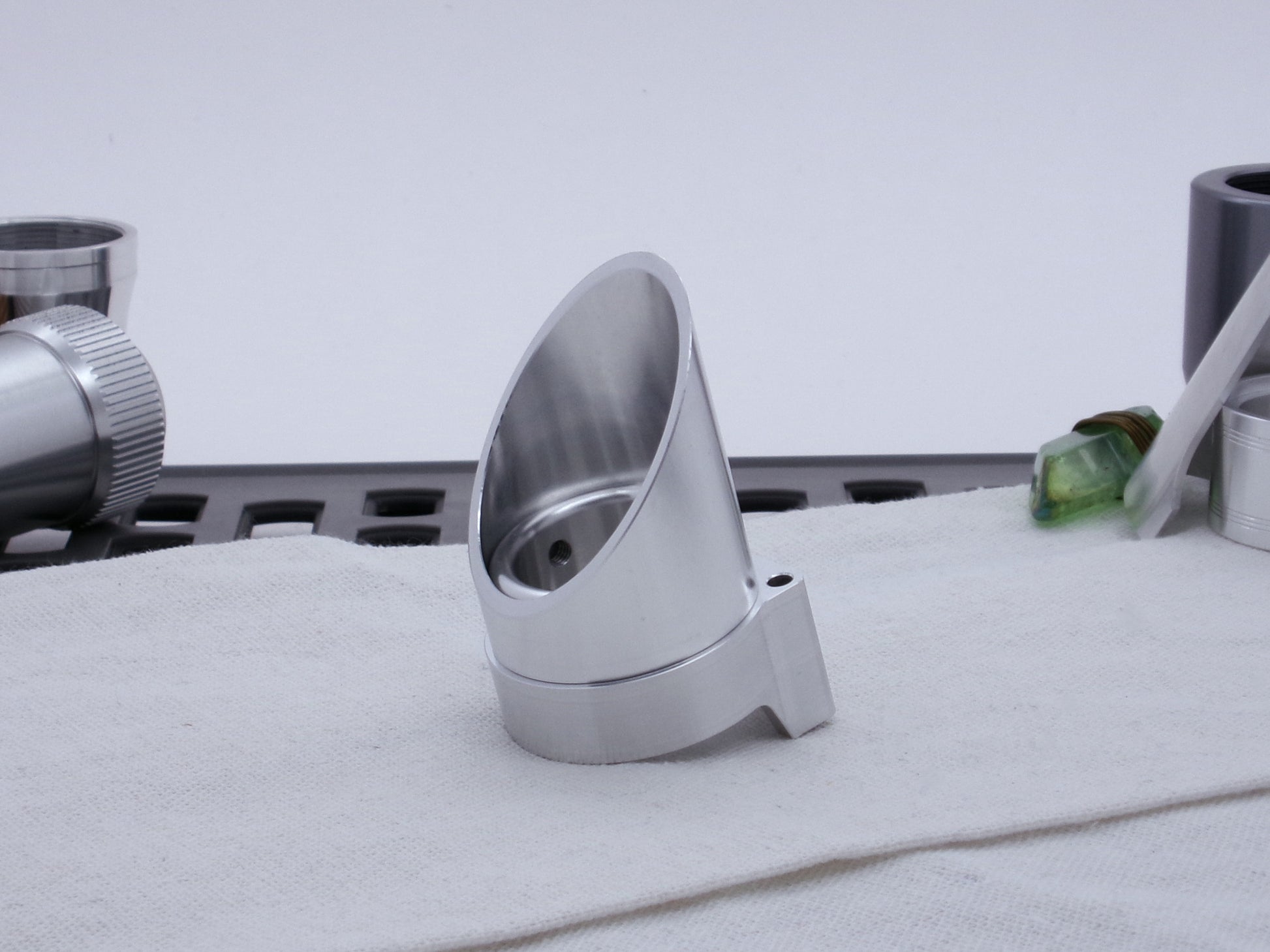

At the heart of this kit is a system of meticulously designed, interlocking components. It starts with the M Type 3 Emitter Tip, which serves as the robust core of your emitter with universal VHC threads and four M4x0.7 retention holes for rock-solid blade and attachment security. This Emitter Tip connects and grounds to the MPP-M Accent Ring, featuring our innovative, reversible 'shimsert' technology allowing builders to utilize this component just about anywhere else on the saber. This Accent Ring design acts as a precision spacer, providing a keyed platform that locks in the MPP-M Shroud. To top it off, the MPP-M shroud features our signature mounting slot system and 17mm of adjustment.

While these three components combine to create a deeply nostalgic and imposing profile, their true strength lies in their modular freedom. Every piece of the MPP-M Emitter Kit was engineered for total independence, empowering you to mix, match, and combine them with the broader Corvus Saber Foundry lineup to forge a completely unique emitter. Delivered in a crisp, raw machined finish, this kit is the ultimate blank canvas ready for your custom etching, weathering, or specialized surface treatments. Build the classic silhouette, or break it apart to forge a hilt that is entirely your own!

Compatibility

Alloy components are designed to interface with known form factors, dimensions, as well as meet or exceed material strength of LGT/Nexus/Damiensaber VHC and TXQ Modular systems. Specifically, Alloy components are manufactured from a higher strength aluminum alloy which provides enhanced durability and strength. Integration and use with other Corvus Saber Foundry Alloy components and other similarly compatible third-party parts is supported and encouraged!

For questions on Fitment and Compatibility, please visit our Fitment FAQ

Listing is for a single kit. Additional parts illustrated are for demonstration purposes of possible configurations and size representation only.
