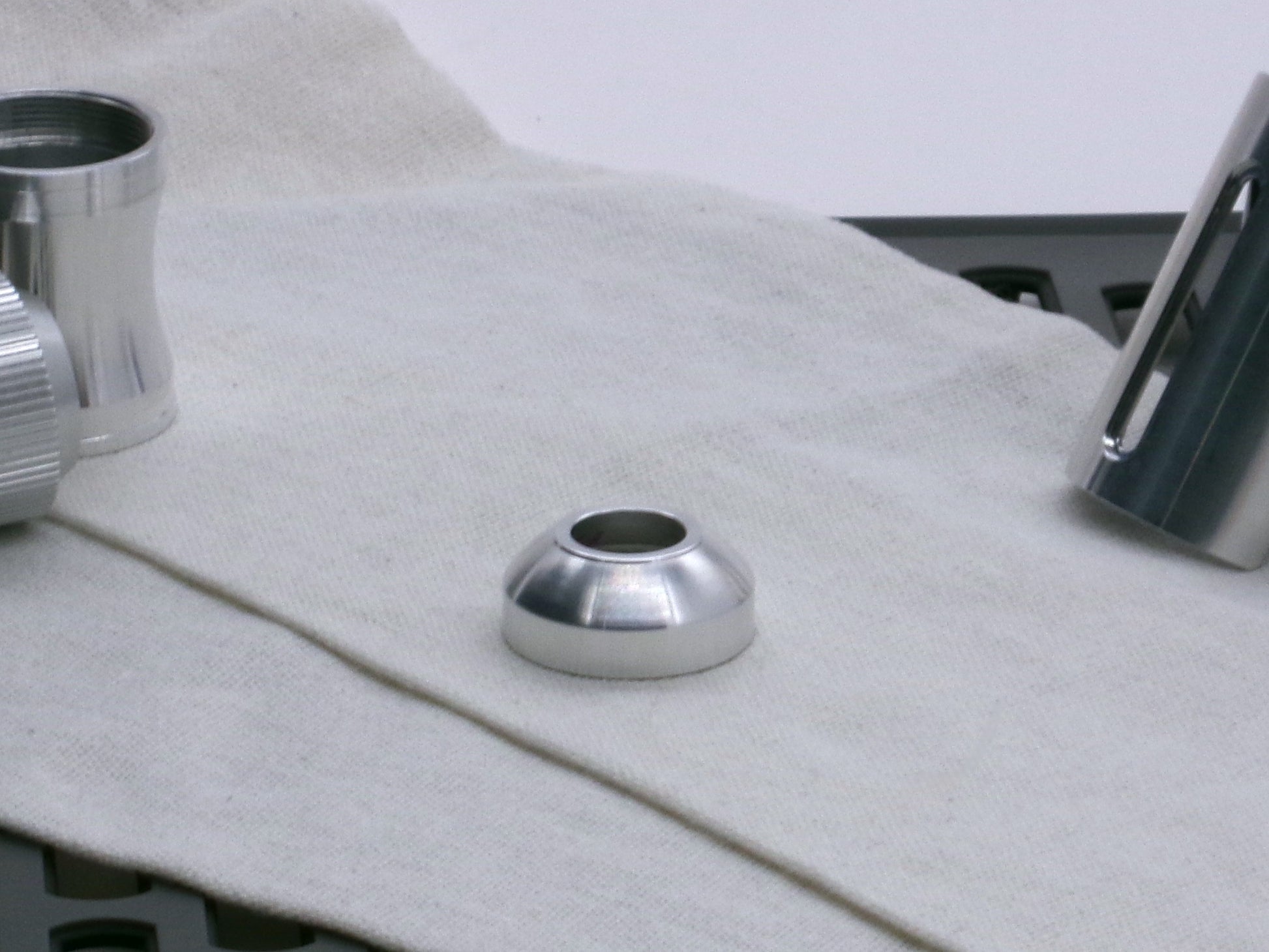

• A basic, aluminum female-threaded pommel. Shows rounded profile and single sound exit hole lying flat.

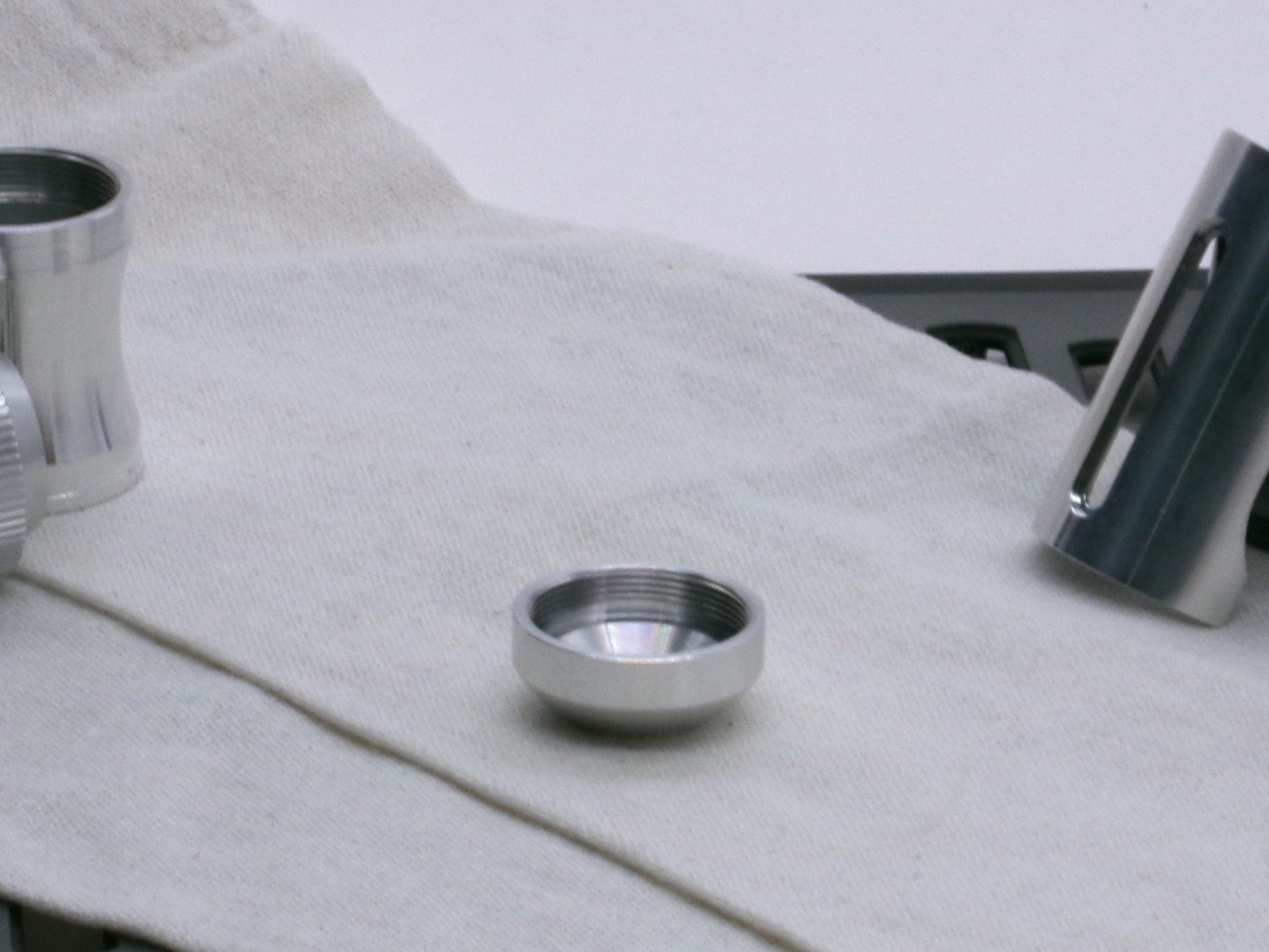

  • A basic, aluminum female-threaded pommel. Shows thread profile and internal chamfer while lying flat.
  • A basic, aluminum female-threaded pommel attached to a Body Segment Type 2 with a Adapter-MM-Type0.
  • A basic, aluminum female-threaded pommel leaning against the Adapter MM Hybrid Type 1 showing rounded profile and sound aperture.
  • A basic, aluminum female-threaded pommel leaning against the Adapter MM Hybrid Type 1 showing internal chamfer profile and sound aperture.
  • A basic, aluminum female-threaded pommel installed on Adapter MM Hybrid Type 1 in 3/4 view.
  • A basic, aluminum female-threaded pommel installed on the Adapter MM Hybrid Type 1 showing rounded profile and sound aperture in 3/4 view.
  • A basic, aluminum female-threaded pommel installed on Adapter MM Hybrid Type 1 with Accent Ring Type 1.1 showing versatility.
  • A basic, aluminum female-threaded pommel installed on Adapter MM Hybrid Type 1 with Accent Ring Type 1.1 showing versatility, standing vertical.
  • A basic, aluminum female-threaded pommel installed on Adapter MM Hybrid Type 1 with Accent Ring Type 1.1 all installed on a Body Segment Type 2, standing vertical.
1 10

In stock

Pommel - F Type_1

Pommel - F Type_1

$10.00
$10.00
Sale Sold out
Shipping calculated at checkout.

Corvus Saber Foundry Alloy - Pommel - Female Type 1 - (VHC Compatible Lightsaber Part)

Corvus Saber Foundry Alloy Adapters provide the utility to connect parts forming the foundation of the Alloy system!

Specifications

  • 6061-T6 Aluminum structure
  • Overall Length added: 14mm
  • Max Diameter: 33mm
  • Sound Aperture: 15mm, single exit
  • Rounded profile
  • Female Threaded boss
  • Compatibility with LGT/Nexus/Damiensaber VHC System Threading
  • Compatible and complimentary with all Corvus Saber Foundry accessories!

Alloy Integration

This lightsaber component is designed as a direct expansion for the Corvus Saber Foundry Alloy System offering expanded component flexibility, interchangeability, and system cross compatibility to the greater VHC schema.  Learn more about the Corvus Saber Foundry Alloy System on our dedicated page: Alloy

Product Information

Manufactured from 6061-T6 aluminum, this long awaited Alloy Pommel features a female threaded format, ready to adapt to any pommel role you wish to achieve.  Just marry it up with any of our Male-to-Male adapters!  An internal chamfer channels sound to a 15mm single exit aperture.  Sized at 33mm this pommel is perfectly compatible with all of our Accent Line.  A nicely rounded profile provides just the right look and feel!  This part was designed to work best with the Alloy Adapter-M/M Hybrid Type 1 and all of our Alloy product line.  Mix and match combinations to find what works best for you!

Compatibility

Alloy components are designed to interface with known form factors, dimensions, as well as meet or exceed material strength of LGT/Nexus/Damiensaber VHC and TXQ Modular systems.  Specifically, Alloy components are manufactured from a higher strength aluminum alloy which provides enhanced durability and strength.  Integration and use with other Corvus Saber Foundry Alloy components and other similarly compatible third-party parts is supported and encouraged!

For questions on Fitment and Compatibility, please visit our Fitment FAQ

Listing is for a single item.  Additional parts illustrated are for demonstration purposes of possible configurations and size representation only.
